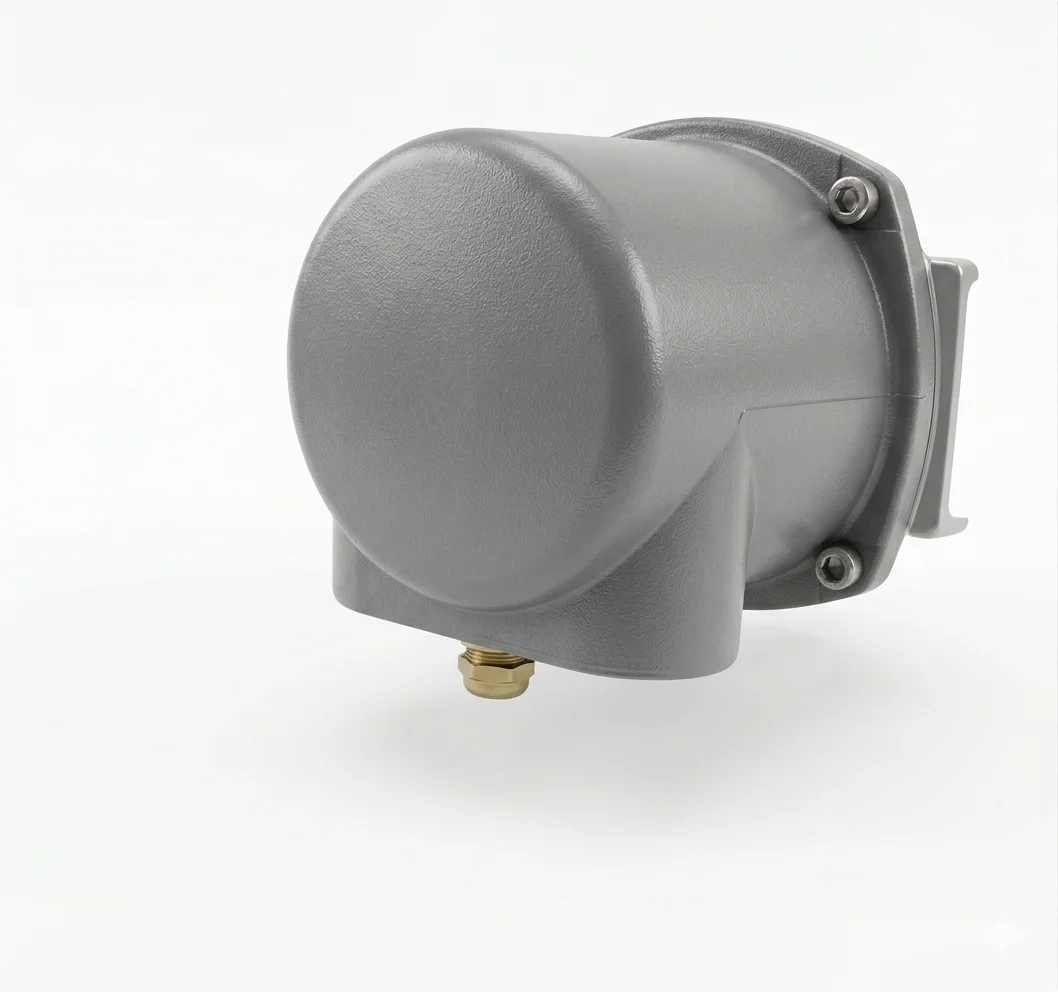

Z024.318B – Cover Electrical Connection With Sockets
- Part No.: 507
- Type: Electrical Connection Cover with Socket Carrier
- Function:
- Provides interface for actuator electrical connections
- Houses socket terminals for control and power signals
- System Compatibility: AUMA plug/socket connector system (SA / SAR / AC / AM series)
- Connection Type: Plug-in socket carrier with screw-type terminals
- Signal Handling:
- Control signals (OPEN/CLOSE, status feedback)
- Power supply connections (motor/control circuits)
- Cable Entries: Multi-entry cover design (sealed cable glands required)
- Mounting: External connection housing mounted on actuator terminal compartment
- Protection: Maintains enclosure integrity (IP67/IP68 when properly sealed)
- Material: High-strength industrial polymer/metal housing (system dependent)
Description
The Z024.318B Cover Electrical Connection with Sockets is a plug-in terminal cover assembly used in AUMA actuator systems. It forms part of the AUMA plug/socket connector system, providing protected electrical connection points for control and power signals between the actuator and external wiring. It also ensures safe sealing and easy disconnection during maintenance or replacement of actuator electronics.
