2SA75212CD104BB4/Z – Electric Actuator
- Type: Electric Multi-turn Actuator Assembly
- Series: AUMA SA / SAR configuration (system-coded variant)
- Function:
- Converts electrical energy into controlled valve movement
- Provides OPEN/CLOSE and positioning control
- Duty Type:
- Open-close duty (SA series) or modulating duty (SAR variant dependent)
- Torque Range: Typically within AUMA SA actuator range up to 32,000 Nm (system dependent)
- Operating Time: Adjustable depending on gearbox and speed configuration
- Voltage: 3-phase AC (industrial supply, configuration dependent)
- Control Compatibility: AUMA AC / AM actuator controls (fieldbus-ready options available)
Description

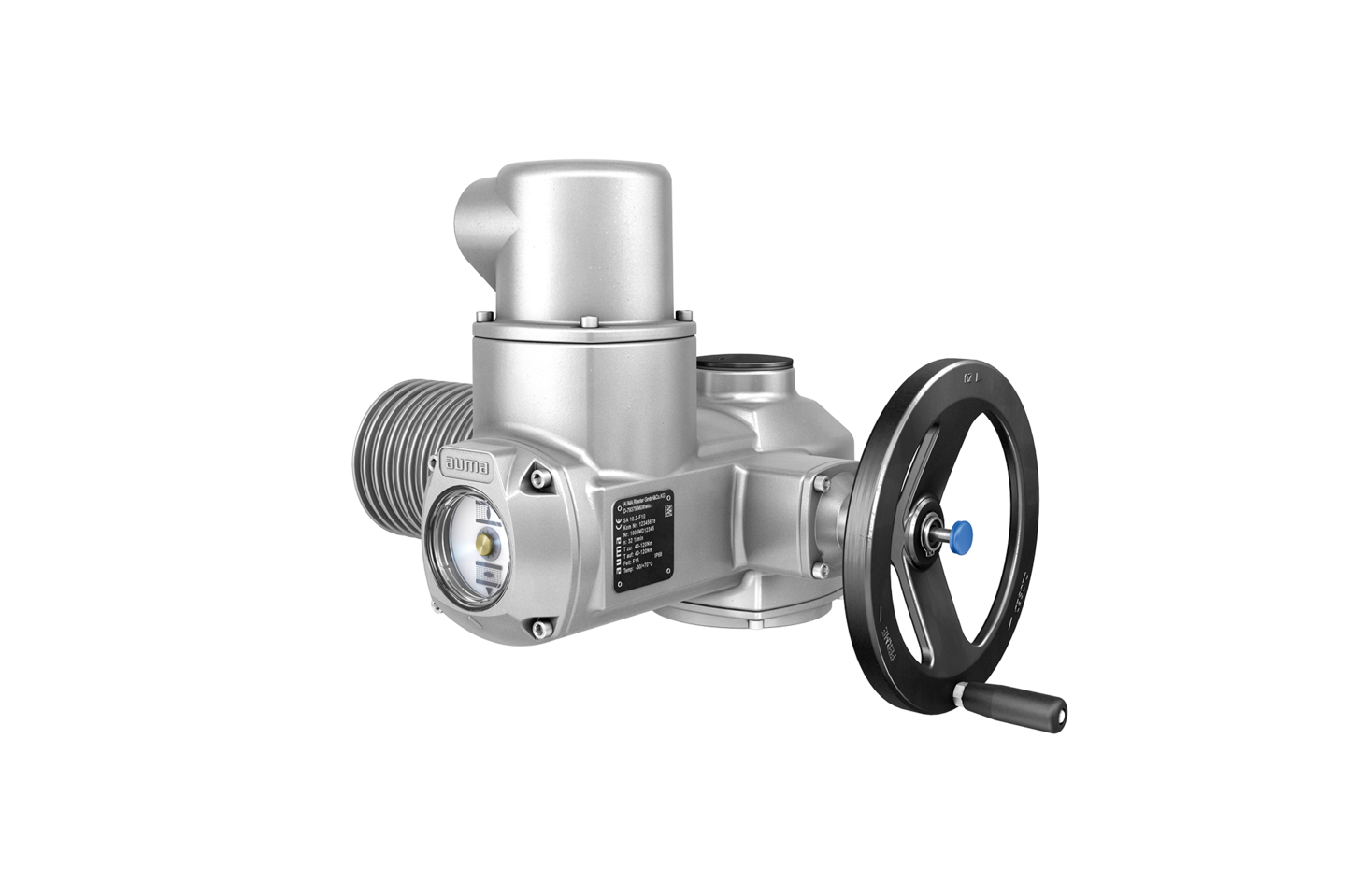

The 2SA75212CD104BB4/Z is a complete AUMA electric multi-turn actuator assembly, designed for automated operation of industrial valves. It integrates a motor, gearbox, limit & torque switching system, and electrical interface to provide reliable OPEN/CLOSE or positioning control in process automation systems.
This actuator is typically used in heavy-duty industrial applications where precise torque control, high reliability, and remote operation are required.
